For the past few week after I asked my friend for the robot mechanical design, I have design the base for the robot structure out from the paper.
The figure below is the one that I have designed as a steel rod base will be the leg for the six-legged robot which supported by 3 servos.

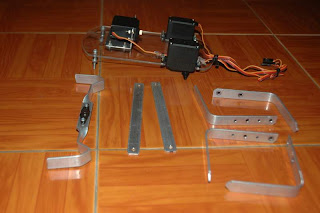

The servo motors have been placed on a transparent plastic platform.
3 Servo motors with other steel plate.
This part will be placed on the middle servo as to stabilize the robot.
Next, I will combine all the steel rod with the servo motors and we shall see the assembling results on nest week.
